RDM-7 Accessory
Plug-and-Play
Harness

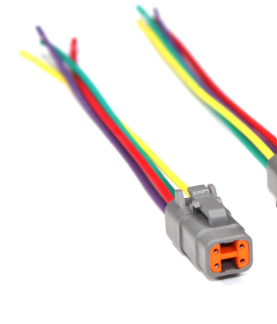

A Deutsch DTM-4 connector loom that plugs the RDM-7 directly into your ECU. Power and CAN — one sealed connector, no soldering.
$49
AUD
DTM-4 Connector
Sealed
Pre-terminated
Automotive-spec
- Direct fit on Haltech — Haltech runs DTM-4 natively on its CAN ports — plugs straight in
- Power + CAN on one plug — 12 V, ground, CAN High, CAN Low all on the single DTM-4
- Pre-terminated dash end — stripped, ferruled, ready to seat in the RDM-7 terminal block
- Sealed automotive connector — vibration, heat and weather tolerant
- Works with Link via adapter — pair with Link's CAN-DTM adapter for a clean Link install
12-month warrantyIncluded with every harness
Free shipping over $992–3 business day AU dispatch
Local supportReal humans, fast replies
RDM-7 compatibleShips pre-installed on new units
Specifications
Built to last,
wired to plug in.
Same connector family Haltech, MoTeC and most motorsport ECUs use.
ECU connector
Deutsch DTM-4, 4-pin, sealed
Dash connector
Pre-stripped, ferruled for RDM-7 terminal block
Signals
12 V power, ground, CAN High, CAN Low
Compatibility
Haltech (direct) · Link (with Link's DTM-4 adapter)
Wire
Automotive-spec, vibration- and heat-tolerant
Power
9–16 V DC vehicle supply
Got a question about your install?
Wiring, fitment, CAN profiles, anything else — our support team can help spec the right setup for your car.
